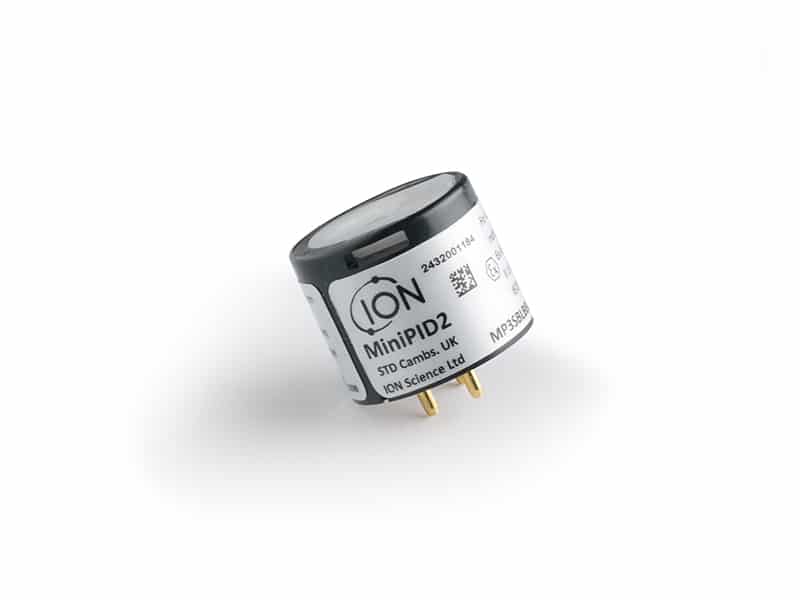

minipid2_11ev

11.7 eV Gas Sensor – MiniPID 2

OEM gas sensor with state of the art sensing technology

Only available from ION Science, the 11.7 eV gas sensor – MiniPID 2 extends the range of detectable compounds to include chlorocarbons, unsaturated fluorocarbons, formaldehyde, ethylene and methanol.

The 11.7 eV gas sensor is virtually insensitive to humidity changes, providing unparalleled performance in a variety of applications.

atex_certificationiecex_certificationulex_certification

Enquire NowDownload STEP FileDownload Drawings

Features

The 11.7 eV gas sensor is a simple plug-and-play sensor able to deliver a dynamic and dependable response to thousands of volatile organic compounds (VOCs) across many diverse applications.

The sensor is designed for both diffusive and in-line pumped sampling, delivering an exceptional response time and clear down. The MiniPID 2 incorporates lamps of exceptional brightness and stability enabling detection of less volatile and less readily sensed compounds reliably, over an extended period of time.

Note: Alumina polishing of MiniPID 2 lamps is appropriate for all MiniPID 2 lamps except the MiniPID 2 11.7 eV lamp. Instead, please use anhydrous ethanol or methanol (please refer to the MiniPID 2 manual for guidance or contact sensors@ionscience.com for further support).

Key Feature

  • Humidity resistance
  • Anti contamination design
  • Removable, pneumatically sealed sensing electrode stack

Key Features

  • Series 4 / A
  • 3 – month warranty (excluding the electrode stack)
  • 3 months serviceable burn time

11.7 eV Gas Sensor Technical Specification

atex_certificationiecex_certificationulex_certification

Performance

Electrode Stack Colour White
Minimum Detection Limit 100 ppb
Range >100 ppm
T90 Response Time (Seconds) <8
Sensitivity >1 mV/ppm

Power and Signal

Supply Voltage (using internal regulator) 3.6 – 18 V (non intrinsically safe 10 – 18 V)
Supply Voltage (using a regulated power supply) 3 – 3.6 V
Current 20 – 32 mA (130 mA for 100 ms at start up)
Power Consumption 100 mW at 3.3 V
Output Signal (using internal regulator) 0 – 3.2 V
Output Signal (using a regulated power supply) 0 to rail voltage – 0.1 V

Environmental

Temperature Range -40 to 65 °C
Relative Humidity Range 0 – 99% RH, non-condensing

Lifetime and Warranty

Expected Life >5 years
Lamp Life 10.6 eV 10,000 Hours
Warranty 10.6 eV lamp and MiniPID Body –12 months – 11.7 eV lamp – 3 months

Approvals

Europe Certification ATEX
North America Certification UL
Worldwide Certification IECEx
Patents US 7,046,012 EC 1474681

Downloads

Download STEP FileDownload Drawings

For further supporting documentation please see below.

11.7 eV Gas Sensor Accessories and Replacement Parts

There are a number of accessories and replacement parts available for the 11.7 eV gas sensor- MiniPID 2, which can be found below. Please contact us if you would like more information or to place an order.

PID Lamp Cleaning Kit

Used to clean the lamp within the MiniPID sensor to remove dirt, grease and grime from the lap window ensuring optimal performance.


Contact us to place an order quoting the below part number.

Part number: A-31063
Stack Removal Tool

Allows safe, easy removal of the stack from the PID sensor.


Contact us to place an order quoting the below part number.

Part number: 846216
White Electrode Stack

Designed for use within the ION Science PID sensor.


Contact us to place an order quoting the below part number.

Part number: A-846267
11.7 eV Lamp

The 11.7 eV lamp is an internal element to the ION Science PID sensor and is specifically designed for use only within ION Science PID.


Contact us to place an order quoting the below part number.

Part number: LA4SM700
Lamp Spring

The lamp spring ensures the lamp stays tightly coupled with the electrode stack.


Contact us to place an order quoting the below part number.

Part number: 846600
