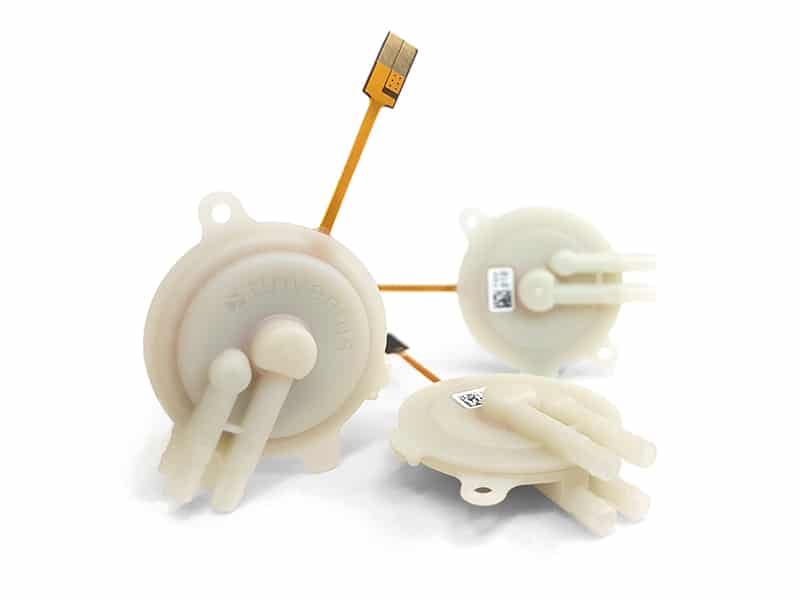

BL Series Disc Pump

Low Cost Micropump

The BL Series Disc Pump, low cost micropump strikes a balance between performance and cost. Like all Disc Pumps, the Disc Pump combines silent operation, pulsation-free flow, millisecond response and high precision in a compact form factor.

Tightening legislation and the growing global focus on air quality, worker safety and environmental emissions are driving the requirements for a new generation of measurement and monitoring systems. With its combination of high performance, pulsation-free flow, controllability and size, the multi award-winning Disc Pump, low cost micropump from ION Science is well placed to enable the development of these systems, from gas samplers and detectors, to laboratory analysers and particle counters.

Enquire NowDownload Datasheet
low cost micropump

Features

All of our pump designs have two pumping chambers. These are configured at the point of manufacture to be in series for higher pressure applications, or parallel for higher flow.

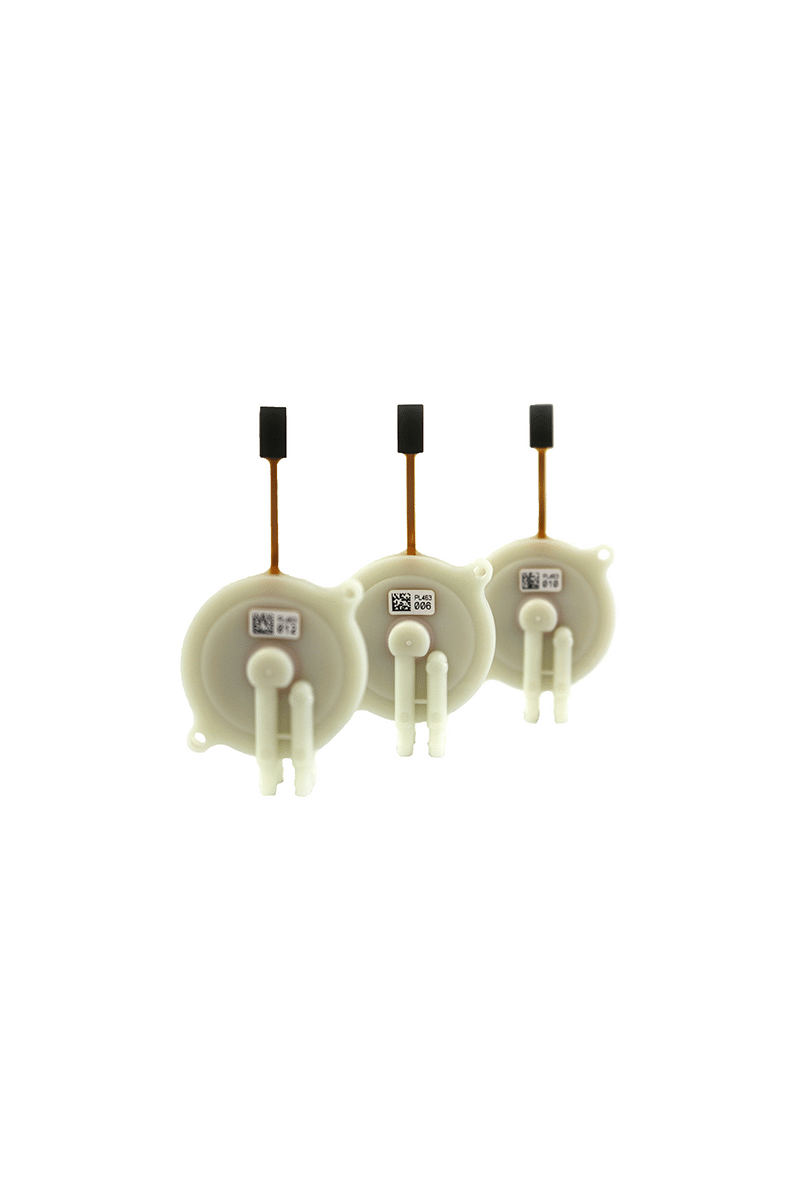

We offer three pump product lines: the entry-level BL Series, which strikes a balance between performance and cost; the XP Series with our highest performance and widest temperature range to suit the most demanding applications; and the LT Series, engineered for applications demanding long operational life in excess of 5,000 hours.

Key Features

  • Exceptional pressure and flow
  • Silent, operation free operation
  • Ultrafast millisecond response
  • Maintenance free
  • Resistant to magnetic fields

Key Features

  • Lightweight, compact form
  • High-precision controllability
  • True pulsation-free flow
  • Infinite turn-down ratio

Technical Specification

BL Series – BL-S2-012

Pressure Range 0 – 300 mBar
Flow Range 0 – 0.5 L/min
Vacuum Range 0 – 200 mBar

BL Series – BL-P2-013

Pressure Range 0 – 170 mBar
Flow Range 0 – 0.95 L/min
Vacuum Range 0 – 170 mBar

BL Series – BL-S2-030

Pressure Range 0 – 270 mBar
Flow Range 0 – 0.85 L/min
Vacuum Range 0 – 180 mBar

BL Series – BL-P2-031

Pressure Range 0 – 160 mBar
Flow Range 0 – 1.65 L/min
Vacuum Range 0 – 160 mBar

Operational

Temperature Range 5 to 40 °C
Humidity Range 0 to 95 % RH
Pumping Medium Air
Noise Level <10 dB
Control Precision <0.1 %
Turn-down Ratio Infinite

Mechanical

Size 29 dia. x 11 mm
Weight 5 g
