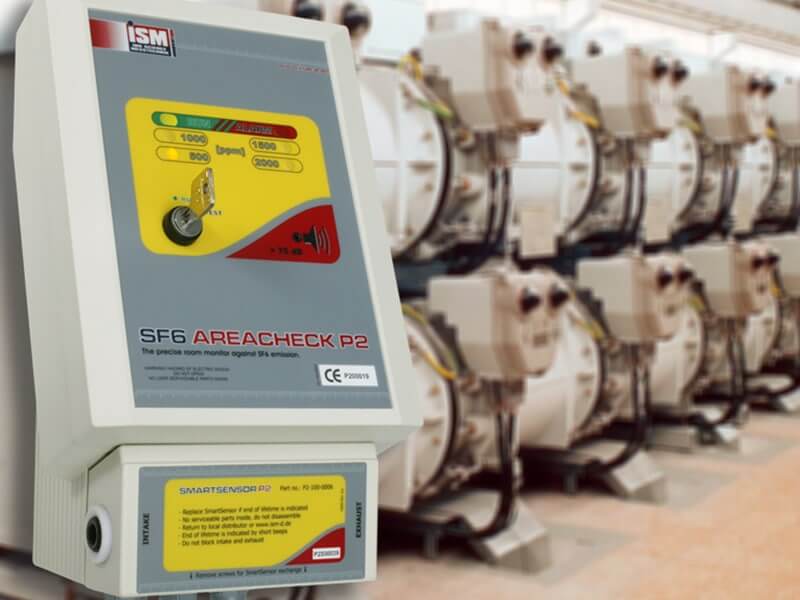

SF6 AreaCheck P2

Fixed SF6 gas detector

This fixed SF6 gas detector utilities relay output for immediate awareness of detected leaks and presents no cross sensitivity with any other gas or moisture in the air. The SF6 AreaCheck P2 has a built-in low flow alarm and self-diagnostic testing.

Enquire NowDownload Brochure
sf6_areacheck_p2_fixed_sf6_gas_detector

Features

The fixed SF6 gas detector has serviceable components with a lifetime of up to 12 months. Measuring stations are maintenance-free, ensuring instrument downtime is minimised.

Ultimate Performance

  • Award winning Negative Ion Capture (NIC) technology
  • Fast, accurate detection down to highly sensitive levels
  • No cross sensitivity with other gases or moisture in air

Ultimate Safety

  • Audio and visual alarms provide clear indication of SF6 leaks
  • Complete safe set up via PC protects from unauthorised access
  • This fixed SF6 gas detector has built in low flow alarm and diagnostics test

Technical Specification

Specification
Value
Detection Principle SF6: NIC
Range 0 – 2000 ppm SF6
Resolution 500 ppm SF6 / 10 ppm
Mains Power 100 – 240 VAC, 50/60 Hz
Power Consumption 18 VA
Operating Temperature – 5 to 45 °C
Storage Temperature – 20 to 60 °C
Operating Humidity Range 10 – 90 % non condensing
Max Load, Relay Output 2.5 A / 230 VAC
Size H 280 x B 165 x T 125 mm
Protection Class IP52
Audible Alarms > 75 dbA, 1m
Weight 1.5 kg (w/o wall mounting bracket)
Fuse  T 1A (slow blow)

* All specifications quoted are at calibration point and under the same ambient conditions.
Specifications are based on isobutylene calibration at 20 ˚C, 90% RH and 1000 mBar
*Model dependant.

Download Brochure

Downloads

For further supporting documentation for SF6 fixed gas detector, please see below.

Fixed SF6 Gas Detector – Accessories and Replacement Parts

There are a number of accessories and replacement parts available for the fixed SF6 gas detector, which can be found below. Please contact us if you would like more information or to place an order.

RS232 Cable – AreaCheck P2

Used to connect the instrument with the computer.


Contact us to place an order quoting the below part number.

Part number: 23095

FAQs

If you have any further questions, please enquire now.
