GasCheck Tesla

Portable Helium Leak Detector

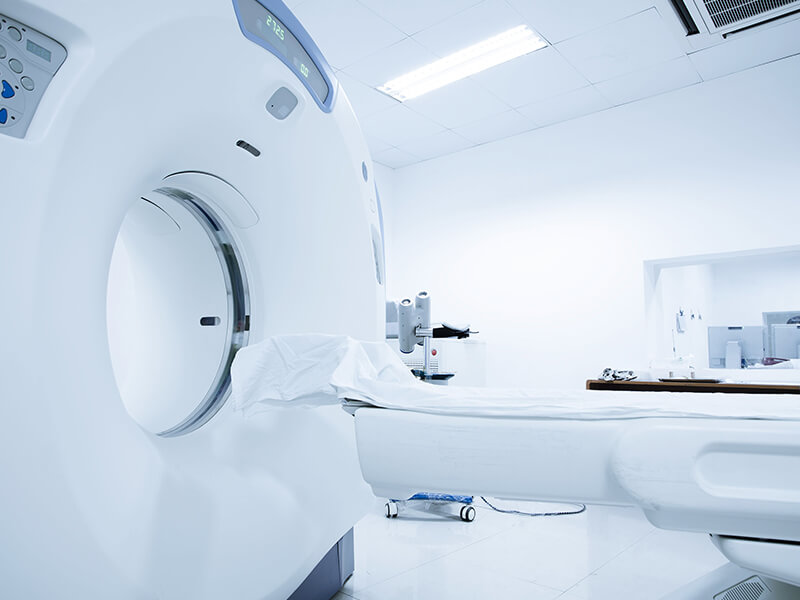

The GasCheck Tesla portable helium leak detector is a highly sensitive helium leak detector designed for effective use within high magnetic fields found around the outside of Magnetic Resonance Imaging (MRI) scanners.

GasCheck Tesla portable gas leak detector can be used on an MRI scanner whilst in operation, meaning interruptions to the machinery are avoided. Helium leaks are found quickly reducing cost, wastage, and downtime of the machinery.

Enquire NowDownload Brochure
gascheck_tesla_portable_helium_leak_detector

Features

GasCheck Tesla portable helium leak detector provides stable, repeatable readings. The instrument’s LCD display, LED indicator and audible sounder clearly indicate the helium leaks present.

The GasCheck Tesla portable helium leak detector automatically zeros to the ambient air around it when switched on, and is ready to detect immediately. The instrument’s easy to use graphical interface and intuitive keypad allows simple function, selection, and adjustment.

Ultimate performance

  • Operates effectively within a magnetic field
  • Detects the smallest of leaks down to ultra-low levels
  • Small internal flow rate provides maximum sensitivity
  • Fast, accurate leak detection
  • Reliable, stable, repeatable readings

Ultimate safety

  • Large, clear LCD back-lit display for easy viewing of results
  • Easy to use graphical icon menu

Technical Specification

Specification
Value
Detector

Micro thermal conductivity detector (MTCD)

Sensor is poison resistant with over range protection

Operation

Battery Type: 4 x alkaline AA size or NiMH (rechargeable)

Typically 40 hours life

Sensitivity  He 1 x 10-5
Accuracy ± 5% display reading ± one digit
Response T90 = 1 second rise and clear down
Sound Flashing LED and 90 dBA (at 10 cm) audible sounder
Calibration Factory calibrated to fully documented procedures in accordance with our ISO 9001:2008 Quality Management System
Temperature

Operating: -20 to +60 °C, -4 to 140 °F

Storage: -20 to +70 °C, -4 to 158 °F

Humidity: 0 to 99 % RH (non-condensing)

Flow Rate 2 cc/mm
Weight & Dimensions

Instrument with probe: 390 x 60 x 49 mm, 15.5 x 2.3 x 1.9”

Case: 420 x 320 x 97 mm, 16.5 x 12.5 x 3.8”

Instrument: 0.45 kg, 1 lb, Packed 1.6 kg, 3.5 lb

Download Brochure

Downloads

For further supporting documentation for GasCheck Tesla portable helium leak detector, please see below.

GasCheck Tesla Portable Helium Leak Detector Accessories and Replacement Parts

There are a number of accessories and replacement parts available for the GasCheck Tesla portable helium leak detector, which can be found below. Please contact us if you would like more information or to place an order.

Long Probe

Used to gain access to leaks in hard to reach areas. Attachment is 30 cm.


Contact us to place an order quoting the below part number.

Part number: A-08045
CalCheck

Provides self-calibration in cc/sec leak rates of ION Science leak detectors.


Contact us to place an order quoting the below part number.

Part number: Contact info@ionscience.com for part numbers and a quotation.
Short Probe

Used to gain access to leaks in hard to reach areas. Attachment is 10 cm.


Contact us to place an order quoting the below part number.

Part number: A-08043
Battery Holder

Accepts 4 x AA size batteries and connects to the instrument via a clip.


Contact us to place an order quoting the below part number.

Part number: 1-BH-01
Probe Cover

Protects the inner probe from damage.


Contact us to place an order quoting the below part number.

Part number: 08024CPC8
