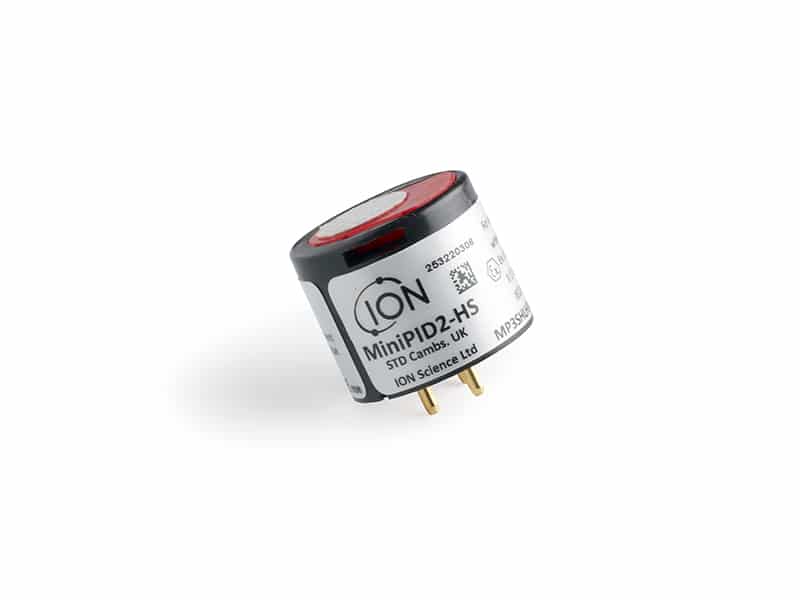

High Sensitivity Gas Sensor – MiniPID 2

OEM gas sensor with state of the art sensing technology

Designed for OEMs, the high sensitivity gas sensor – MiniPID 2 is the latest in the range of PID sensors from ION Science for sub PPB level detection.

The ground-breaking high sensitivity gas sensor is 15 times more sensitive than the existing PPB gas sensor and capable of detecting trace levels of volatile organic compounds (VOCs) over a long period of time making it ideal for indoor air quality monitoring applications.

atex_certificationiecex_certificationulex_certification

Enquire NowDownload STEP FileDownload Drawings

Features

Delivering a dependable response to thousands of VOCs across many diverse applications, the high sensitivity VOC sensor is a simple plug and play sensor providing a wide detection range of 0.5 ppb up to 3 parts per million (ppm). ION Science’s high sensitivity gas sensor also features a re-designed, pneumatically sealed electrode stack for high sensitivity and a wide detection range.

An innovative self-diagnostic feature indicates whether the electrode stack is contaminated or if the sensor is not operating correctly. The high sensitivity VOC sensor  incorporates ION Science’s long-life lamp that offers 10,000 hours continuous operation. Together with exceptional brightness and improved stability, this facilitates reliable detection of less volatile and less readily sensed compounds, over an extended period of time.

Note: Alumina polishing of MiniPID 2 lamps is appropriate for all MiniPID 2 lamps except the MiniPID 2 11.7 eV lamp. Instead, please use anhydrous ethanol or methanol (please refer to the MiniPID 2 manual for guidance or contact sensors@ionscience.com for further support).

Key Features

  • Patented humidity resistant technology
  • 10,000 hours continuous  lamp life
  • 10.6 eV lamp

Key Features

  • High sensitivity for sub – ppb level detection
  • 12 month warranty (not including stack)
  • Sensor lifetime >5 years (excluding lamp and electrode stack)

Key Features

  • Removable, pneumatically sealed electrode stack
  • Certified intrinsic safety
  • Series 4 / A

High Sensitivity Gas Sensor Technical Specification

atex_certificationiecex_certificationulex_certification

Performance

Electrode Stack Colour Red
Minimum Detection Limit 0.5 ppb
Range 0 – 3 ppm
T90 Response Time (Seconds) <12
Sensitivity >600 mV/ppm

Power and Signal

Supply Voltage (using internal regulator) 3.6 – 18 V (non intrinsically safe 10 – 18 V)
Supply Voltage (using a regulated power supply) 3 – 3.6 V
Current 20 – 32 mA (130 mA for 100 ms at start up)
Power Consumption 100 mW at 3.3 V
Output Signal (using internal regulator) 0 – 3.2 V
Output Signal (using a regulated power supply) 0 to rail voltage – 0.1 V

Environmental

Recommended Operational Temperature Range 0 – 40 °C
Relative Humidity Range 0 – 99% RH, non-condensing

Lifetime and Warranty

Expected Life >5 years
Lamp Life 10,000 hours
Warranty 10.6 eV lamp and MiniPID Body –12 months

Approvals

Europe Certification ATEX
North America Certification UL
Worldwide Certification IECEx
Patents US 7,046,012 EC 1474681
