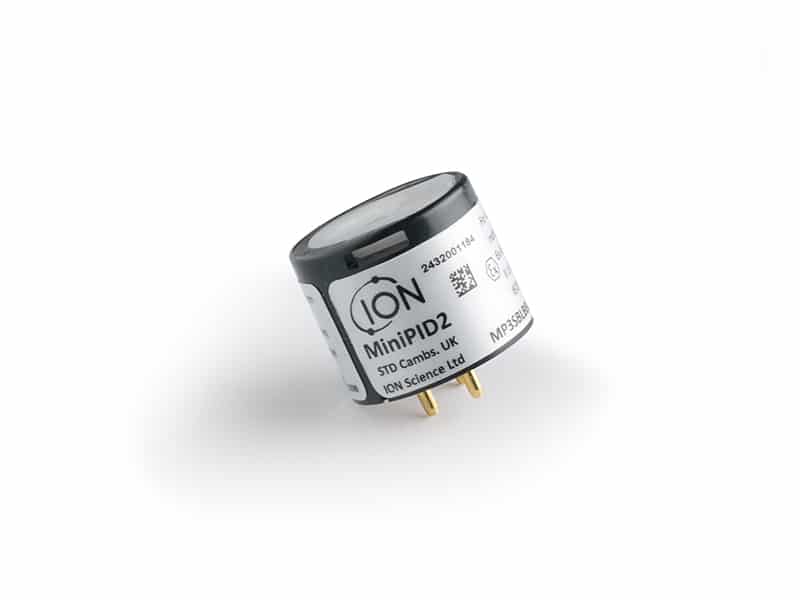

PPB Gas Sensor – MiniPID 2
OEM gas sensor with state of the art sensing technology
The PPB gas sensor – MiniPID 2 is optimised to deliver an exceptionally low background which allows for optimum low-end sensitivity whilst maintaining a wide dynamic range.
This PBB gas sensor is virtually insensitive to humidity changes, providing unparalleled performance in a variety of applications.
The PPB gas sensor is a simple plug-and-play sensor able to deliver a dynamic and dependable response to thousands of volatile organic compounds (VOCs) across many diverse applications.
The VOC sensor is designed for both diffusive and in-line pumped sampling, delivering an exceptional response time and clear down. The PPB gas sensor incorporates lamps of exceptional brightness and stability enabling detection of less volatile and less readily sensed compounds reliably, over an extended period of time.
Note: Alumina polishing of MiniPID 2 lamps is appropriate for all MiniPID 2 lamps except the MiniPID 2 11.7 eV lamp. Instead, please use anhydrous ethanol or methanol (please refer to the MiniPID 2 manual for guidance or contact email@example.com for further support).
- Humidity resistance
- Anti contamination design
- Removable, pneumatically sealed sensing electrode stack
- Series 4 / A
- 12 – month warranty (excluding the electrode stack)
- Expected life > 5 years
PPB Gas Sensor Technical Specification
|Electrode Stack Colour||White|
|Minimum Detection Limit||1 ppb|
|T90 Response Time (Seconds)||<8|
Power and Signal
|Supply Voltage (using internal regulator)||3.6 – 18 V (non intrinsically safe 10 – 18 V)|
|Supply Voltage (using a regulated power supply)||3 – 3.6 V|
|Current||20 – 32 mA (130 mA for 100 ms at start up)|
|Power Consumption||100 mW at 3.3 V|
|Output Signal (using internal regulator)||0 – 3.2 V|
|Output Signal (using a regulated power supply)||0 to rail voltage – 0.1 V|
|Temperature Range||-40 to 65 °C|
|Relative Humidity Range||0 – 99% RH, non-condensing|
Lifetime and Warranty
|Expected Life||>5 years|
|Lamp Life||10.6 eV 10,000 Hours|
|Warranty||10.6 eV lamp and MiniPID Body –12 months|
|North America Certification||UL|
|Patents||US 7,046,012 EC 1474681|
PPB Gas Sensor Accessories and Replacement Parts
There are a number of accessories and replacement parts available for the PPB gas sensor, which can be found below. Please contact us if you would like more information or to place an order.
