portable sf6 leak monitor

SF6 Leakmate

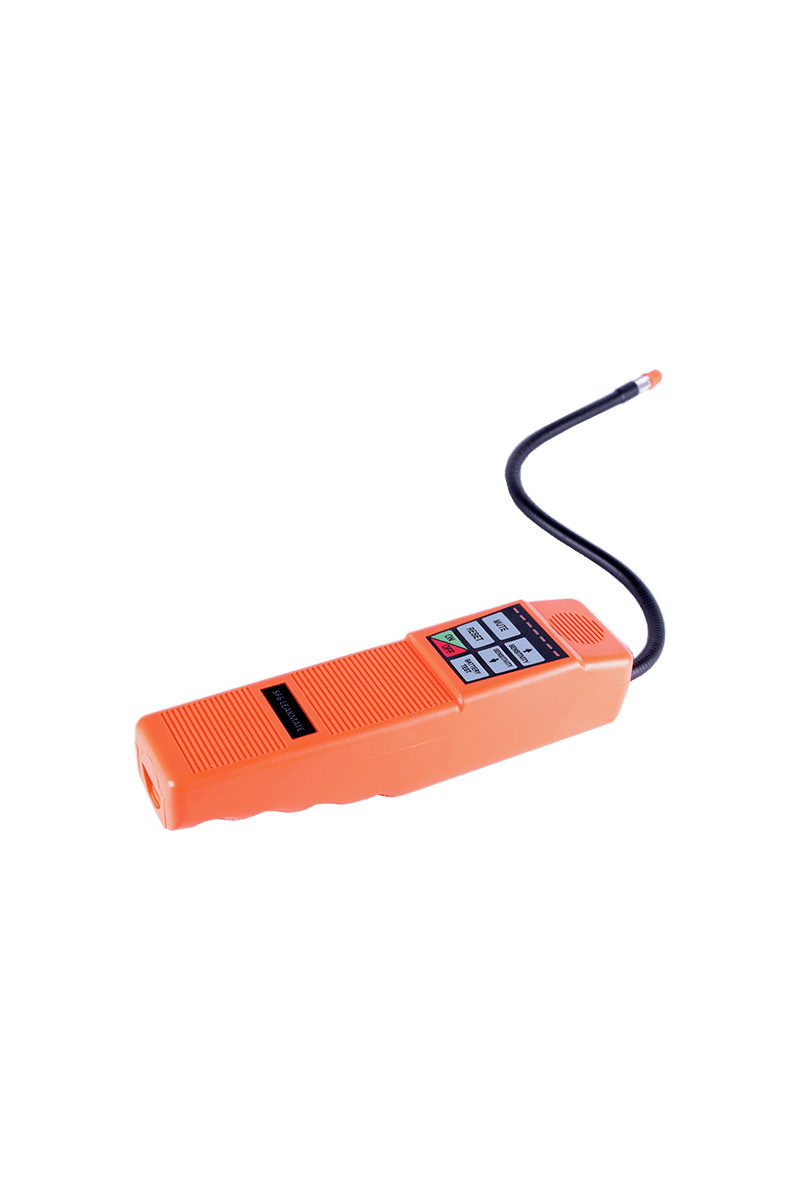

Portable SF6 Leak Monitor

The SF6 Leakmate, portable SF6 leak monitor is a great device for mobile SF6 leak detection. In practical use, it has a detection threshold of 1 x 10E-6 mbar l/s, which makes it perfectly suitable for simple leak detection applications on SF6 switchgear. The easy to use, processor controlled portable SF6 leak monitor, features both an audible alarm and an LED bar graph display, allowing estimation if a small, medium or big leak is being detected.

Enquire NowDownload Brochure
portable sf6 leak monitor

Features

The portable SF6 leak monitor automatically compensates all ambient influences like temperature changes or movement of air in the room. Intelligent control sets up the instrument appropriately for the ambient situation.

It then uses the present gas concentration as its zero line and begins to look for even higher gas concentrations, which by all means occur when a leak is approached. This will again be indicated audibly and visually.

Ultimate Performance

  • Threshold of 1 x 10E-6 mbar l/s
  • Simple leak detection applications on SF6 switchgear

Ultimate Safety

  • Battery test display
  • Automatic zero
  • Audible alarm
  • LED bar graph display

Ultimate Flexibility

  • Selectable sensitivity

Technical Specification

Specification
Value
Detector High Voltage Ionisation
Sensitivity 1 x 10E-6 mbar 1,s for SF6
Response Time Approx 1s
Audio Sound pitch proportionally follows leak rate
Sniffing Probe 355 mm flexible pipe
Operating Temperature Range – 20 to 50 °C
EMC Rating CE declaration of conformity
Weight and Dimensions 2100 g including accessory
330 x 280 x 125 including transport case

* All specifications quoted are at calibration point and under the same ambient conditions.
Specifications are based on isobutylene calibration at 20 ˚C, 90% RH and 1000 mBar
*Model dependant.

Download Brochure

Downloads

For further supporting documentation for SF6 Leakmate, portable SFleak monitor please see below.

SF6 Leak, portable SF6 leak monitor – Accessories and Replacement Parts

There are a number of accessories and replacement parts available for the portable SF6 leak monitor, which can be found below. Please contact us if you would like more information or to place an order.

CalCheck

Provides self-calibration in cc/sec leak rates of ION Science leak detectors.


Contact us to place an order quoting the below part number.

Part number: Contact info@ionscience.com for part numbers and a quotation.

FAQs

If you have any further questions, please enquire now.
