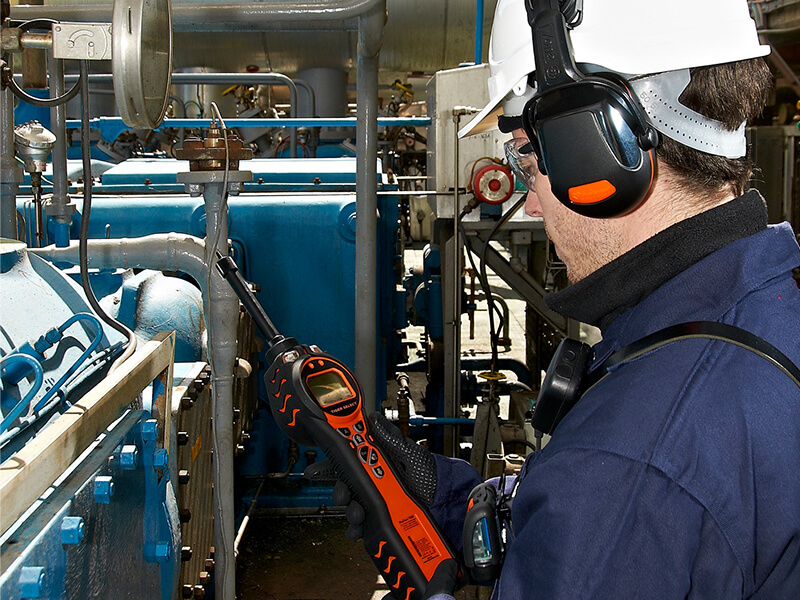

tiger_select_benzene_gas_detector

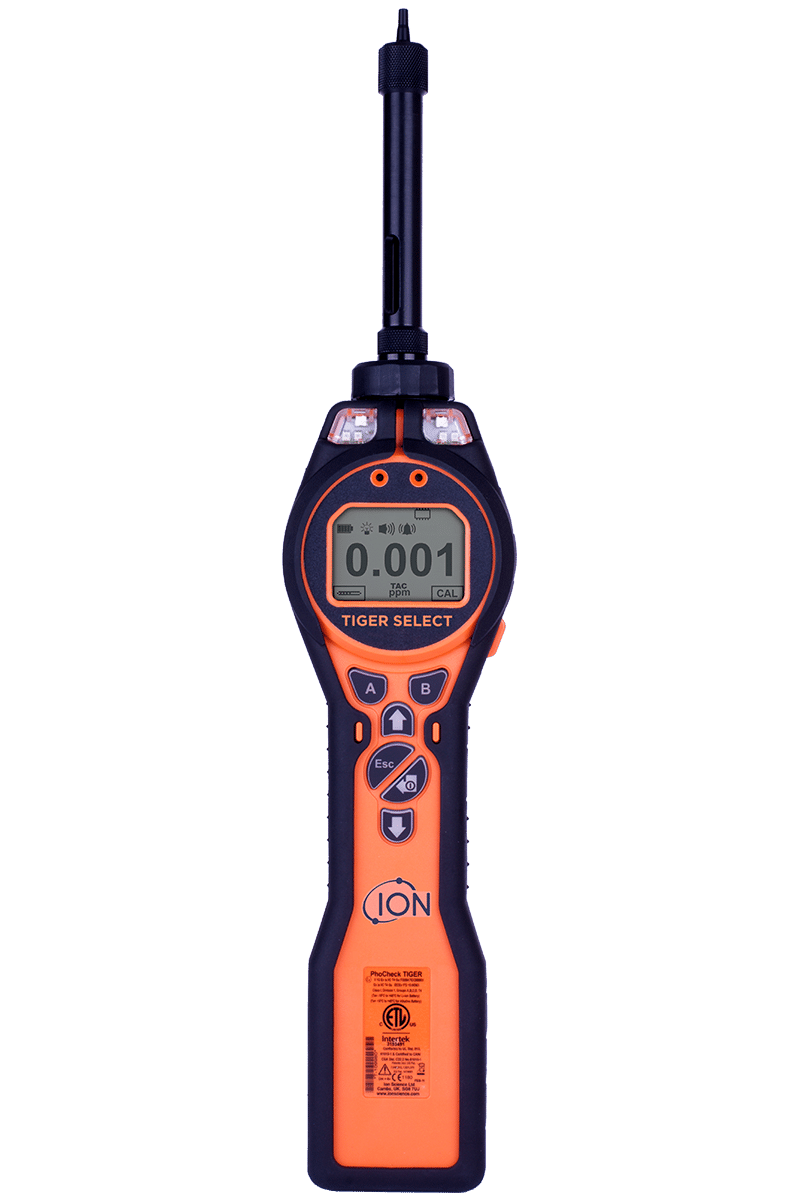

Tiger Select

Portable benzene gas detector

The Tiger Select is a portable benzene gas detector with two operation modes for rapid detection of benzene and Total Aromatic Compounds (TACs) providing accurate, reliable data.

Tiger Select portable benzene gas detector is capable of providing 15-minute short-term exposure limits (STELs) and 8-hour time-weighted averages (TWAs) for total aromatic compounds (TACs).

etl_certificationIECEx certificationATEX certficationkgs_certification

Enquire NowDownload Brochure

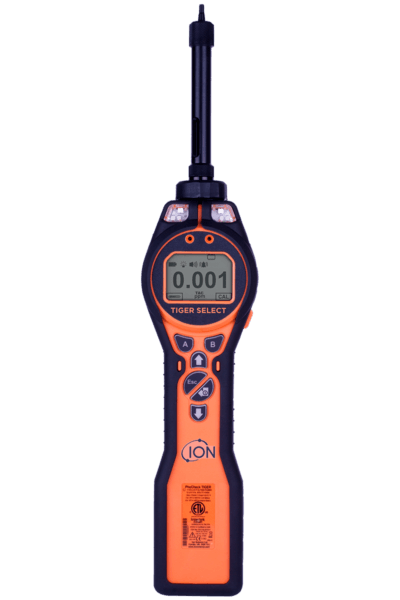

tiger_select_portable_benzene_detector

Features

The Tiger Select portable benzene gas detector, displays real-time data, ensuring the final reading represents the full value of actual benzene present. Benzene concentrations are displayed down to parts-per-billion (ppb) levels, giving you accurate, reliable data you can count on.

Tiger Select can also be used in ‘standard Tiger operational mode‘ without the use of a benzene pre-filter tube to deliver active indications of volatile organic compounds (VOCs), including benzene, at concentrations as low as 1 ppb benzene equivalent.

There are 3 gas detection instruments in the Tiger range, the other two include Tiger and Tiger LT.

Ultimate Performance

  • Unrivalled sensitivity detects down to ppb levels
  • Selectively detects benzene with ION Science pre-filter tube
  • In-built humidity resistance with no need to compensate
  • Anti-contamination design for extended field operation

Ultimate Safety

  • Large battery capacity gives several days of use
  • Torch and back-lit keypad for low light conditions
  • Batteries field replaceable, even in explosive environments
  • 95 dBA, bright LED and vibration alarms alert you to gases present

Ultimate Flexibility

  • Simple icon driven menu requires minimal user training
  • Filters and lamps replaceable in minutes
  • Li-ion battery for up to 24 hours continuous operation
  • Five year warranty when instrument registered online

Technical Specification

etl_certificationIECEx certificationATEX certficationkgs_certification

Specification
Value
Minimum Sensitivity PPM Model Standard running mode 0.1 ppm
TAC 0.01 ppm
Tube mode 0.01 ppm (res. 0.001 ppm)
Maximum Sensitivity PPB Model Standard running mode 0.001 ppm
TAC 0.001 ppm
Tube mode 0.01 ppm (res. 0.001 ppm)
Maximum Reading** Standard mode up to 20,000 ppm or 20,000 mg/m3
Tube mode 200 ppm or 639 mg/m3 benzene
Response Time 130 seconds at 20 °C (variable) progressive indication of benzene breakthrough is displayed in real time
Accuracy*** ± 10 % displayed reading ± one digit benzene (tube mode)
Intrinsically Safe Approvals

II 1G Ex ia IIC T4 Ga

Tamb = – 15 °C ≤Ta ≤+45 °C (with lithium ion battery pack)

Tamb = – 15 °C ≤Ta ≤+45 °C (with alkaline battery pack)

ITS09ATEX26890X

IECEx ITS 10.0036X

3193491 conforms to UL Std. 913, 61010-1 & Certified to CAN/CSA std. C22.2 No. 61010-1

Class 1 Division 1. Approval for Groups A, B, C & D, T4

Battery Life

Li-ion: life up to 24 hours, charge time 6.5 hours

Alkaline: 3 x AA, typically 8.5 hours life

Lamps 10.0 eV Krypton PID lamp
Data Logging* 120,000 data log points including date and time stamp
Communication Direct USB 1.1
Calibration 2 and 3 points calibration (via calibration kit accessory)
Alarm Flashing LEDs Amber (low alarm) Red (high alarm)
Sounder 95 dBA at 300 mm (12″)
Vibration on alarm
Pre-programmed TWA and STEL
Flow Rate ≥ 220 ml/min (with blocked flow alarm)
Temperature Operation: – 20 to 60 °C, – 4 to 140 °F (non intrinsically safe)
Humidity: 0 – 99 % RH (non condensing)
Protection Designed to IP65 (heavy rain)
EMC tested E613261:2006, EN50270:2006 & CFR 47:2009 Class A
Weight and Dimensions Instrument (probe fitted, no tube attached) Height: 465 x Width: 89 x Depth: 61 mm (18.3 x 3.5 x 2.4″)
Instrument weight: 0.75 kg
Standard case: packed weight: 5 kg (176 oz)

Specifications are based on Benzene calibrations at 20 °C and 1000mBar
*Model and gas dependent.
**Maximum reading is achieved with certain analytes such as ethanol.
***All specifications quoted are at calibration point and under the same ambient conditions.

Download Brochure

Video Library

Benzene related products from ION Science

With work exposure limits so low it has never been more important to have equipment that can detect benzene down to ppb levels.

Tiger Select – Portable Benzene Gas Detector

The Tiger Select is a portable benzene gas detector with two operation modes for rapid detection of benzene and Total Aromatic Compounds (TACs) providing accurate, reliable data.

Downloads

For further supporting documentation for Tiger Select portable benzene gas detector, please see below.

Tiger Select Portable Benzene Gas Detector Accessories and Replacement Parts

There are a number of accessories and replacement parts available for the Tiger Select portable benzene gas detector, which can be found below. Please contact us if you would like more information or to place an order.

Alkaline Battery Pack

The Tiger AA battery pack accepts 3 x AA Alkaline batteries offering up to 8.5 hours of continuous use.


Contact us to place an order quoting the below part number.

Part number: A-861241
Docking Plate and Charger

Ideal for securing and charging your Tiger model within your vehicle whilst on the move.


Contact us to place an order quoting the below part number.

Part number: A-861511
Flexi Probe 1m

The 1m flexi probe enables greater flexibility for the detection of VOCs in hard to reach places.


Contact us to place an order quoting the below part number.

Part number: 861642
Holster and Belt

Ideal for when you are working at heights and climbing.


Contact us to place an order quoting the below part number.

Part number: 861266
Flexi Probe

The flexi probe enables greater flexibility for the detection of VOCs in hard to reach places.


Contact us to place an order quoting the below part number.

Part number: A-861406
PID Calibration Kit 100 ppm Isobutylene 103 Litres

This gas is used to calibrate Tiger, Tiger LT, Tiger Select and Cub.


Contact us to place an order quoting the below part number.

Part number: A-845213
Calibration Gas 100 ppm isobutylene 34 L

A 100 ppm isobutylene gas cylinder for accurate calibration and verification of instrument performance.


Contact us to place an order quoting the below part number.

Part number: 861655
Accessory Kit – Tiger Select

Contains a lamp cleaning kit, PTFE filters and other components required for general user servicing.


Contact us to place an order quoting the below part number.

Part number: A-861498
Tiger Harness

This heavy duty leather harness offers a secure mount for the Tiger range. The instrument is securely held across the chest allowing hands free use.


Contact us to place an order quoting the below part number.

Part number: 861412
PID Response Check Pen

The pen provides simple, quick reassurance that your detector is responding to the presence of VOCs prior to use.


Contact us to place an order quoting the below part number.

Part number: 4/QM-01
Car Charger Lead

This car charger lead plugs into the Tigers charge cradle allowing the instrument to be charged from a standard 12Vdc cigar/cigarette lighter socket.


Contact us to place an order quoting the below part number.

Part number: 1/jawu-01
Lanyard

The lanyard can prevent you from accidentally dropping your Tiger range instrument as it will be tethered to your wrist.


Contact us to place an order quoting the below part number.

Part number: 861235
PID Lamp Cleaning Kit

Used to clean the lamp within the MiniPID sensor to remove dirt, grease and grime from the lap window ensuring optimal performance.


Contact us to place an order quoting the below part number.

Part number: A-31063
Charger Support Strap

The charger support strap can hold the Tiger instrument against the charge cradle. It is useful if charging within a moving vehicle.


Contact us to place an order quoting the below part number.

Part number: 861245
5m Extension Probe

Used for hard to reach areas such as confined spaces.


Contact us to place an order quoting the below part number.

Part number: A-861413
Stack Removal Tool

Allows safe, easy removal of the stack from the PID sensor.


Contact us to place an order quoting the below part number.

Part number: 846216
Demand Flow Regulator

The demand flow regulator draws gas when demanded by an instrument. Used for Cub, Tiger, Tiger LT, Tiger Select & Falco Pumped.


Contact us to place an order quoting the below part number.

Part number: 5/RD-01
10m Extension Probe

Used for hard to reach areas such as confined spaces.


Contact us to place an order quoting the below part number.

Part number: A-861414
Charge Cradle

Can charge a Tiger lithium ion battery in just 6.5 hours. It can charge battery packs separately or connected to the instrument.


Contact us to place an order quoting the below part number.

Part number: A-861220
Probe

The probe attaches easily and securely to the end of the instrument.


Contact us to place an order quoting the below part number.

Part number: 880207
Sensor Cover

The sensor cover is screwed to the back of the Tiger models to protect the MiniPID 2.


Contact us to place an order quoting the below part number.

Part number: A-861259
Probe Seal

The probe seal sits in the filter clamp to keep it air tight.


Contact us to place an order quoting the below part number.

Part number: 880202
Exhaust Barb

Screws into the exhaust port of the instrument allowing gas to be captured into a sample bag via typical 1/4 ID pipe.


Contact us to place an order quoting the below part number.

Part number: 861482
Standard Case

Convenient storage for the Tiger instrument range. Contains pre-cut foam inserts allowing the instrument, charger and accessories to be stored.


Contact us to place an order quoting the below part number.

Part number: A-31166
White and Gold Electrode Stack

Designed for use within the ION Science PID sensor.


Contact us to place an order quoting the below part number.

Part number: A-846417
Benzene Tube Opener

Designed to safely break the glass tip off the benzene tube and stores it in the container.


Contact us to place an order quoting the below part number.

Part number: 5/FD-02
Sensor Cover Screw

The screw is used to keep the sensor cover attached to the back of the Tiger models.


Contact us to place an order quoting the below part number.

Part number: 861234
PTFE Filter

Used to protect the instrument from debris and water ingress.


Contact us to place an order quoting the below part number.

Part number: A-861472
Rubber Boot

Protects your instrument from damage during general use.


Contact us to place an order quoting the below part number.

Part number: 861205
O-Ring

Used to make an air tight seal ensuring all gas passes through the PTFE filter.


Contact us to place an order quoting the below part number.

Part number: 5/OV-02
Mains Power Adaptors

For use with the charge cradle, allows direct connection with UK, US, EU and AUS power sockets.


Contact us to place an order quoting the below part number.

Part number: 1/VS-22
Filter Clamp

Filter clamp holds the PTFE filter in place and ensures an air tight seal in conjunction with the O-ring.


Contact us to place an order quoting the below part number.

Part number: 861579
Calibration Adaptor

Connects to a typical 1/4" ID calibration pipe when calibrating using a gas flow regulator. NOTE: Not to be used with a demand flow regulator.


Contact us to place an order quoting the below part number.

Part number: 861476
USB Cable – Tiger

Fast direct connection between the Tiger instrument range and a computer.


Contact us to place an order quoting the below part number.

Part number: 861230
Benzene Pre-Filter Tubes

Ensures rapid detection and selective measurement of benzene and attaches to the Tiger Select via the tube holder.


Contact us to place an order quoting the below part number.

Part number: 861614
Sensor Seal

The sensor seal is placed on the sensor cover of the Tiger models.


Contact us to place an order quoting the below part number.

Part number: A-861214
Rechargeable Battery

Offers up to 24 hours of continuous use.


Contact us to place an order quoting the below part number.

Part number: A-861240
Carbon Filter

The carbon filter removes VOC gases from ambient air allowing instruments to be zero'd.


Contact us to place an order quoting the below part number.

Part number: A-31057
Lamp Spring

The lamp spring ensures the lamp stays tightly coupled with the electrode stack.


Contact us to place an order quoting the below part number.

Part number: 846600
Housing Clamp

Ensures the filter clamp is held in place ensuring a leak tight seal.


Contact us to place an order quoting the below part number.

Part number: 861218
10.6 eV Lamp

The 10.6 eV lamp is an internal element to the ION Science PID sensor and is specifically designed for use only with ION Science PID sensors.


Contact us to place an order quoting the below part number.

Part number: LA4TM600
Tube Holder

Designed to hold the benzene tubes securely onto the end of the Tiger Select.


Contact us to place an order quoting the below part number.

Part number: A-880209

FAQs

If you have any further questions, please enquire now.

Are ION Science part of the WEEE Compliance Scheme?

How do I upgrade my Tiger PC software?

What response factor do I need?

Global Distributors

All ION Science distributors are trained to the highest standards to provide you with access to our product portfolio locally, along with the best possible service and support. Find a local representative within our network and get in touch by submitting the online enquiry form.

Where to Buy

Slide ION Science Global Distributors cross Canada ERE, Inc. North America H2 Solutions, Inc. Canada Canada Levitt-Safety Mexico Penta Com Panama & Costa Rica Grupo ITS USA - Georgia EON Products, Inc. USA - Texas Geotech Environmental Equipment, Inc. USA - California ICON Safety Co Inc. USA - Louisiana Moody-Price USA - Texas REPSS, Inc U.S. Environmental USA - Massachusetts ION Science Ltd Head office Address The Hive, Butts Lane, Fowlmere, Royston, SG8 7SL, UK Telephone number +44 (0) 1763 208503 Email address info@ionscience.com Click Here cross United Kingdom cross Argentina Dastec S.R.L. south america overlay ION Science Global Distributors South America Bolivia Inteccon Inc. Brazil Inteccon Inc Columbia Inteccon Inc. French Guiana Inteccon Inc Paraguay Inteccon Inc. Suriname Inteccon Inc. Bolivia Dastec S.R.L. Brazil Clean Environment Chile Inteccon Inc Ecuador Inteccon Inc. Guyana Inteccon Inc Peru Inteccon Inc. Uruguay Inteccon Inc. Venezuela Inteccon Inc. cross africa overlay ION Science Global Distributors Algeria Ion Science France Africa Egypt Ion Science Ltd. (Egypt) Ghana GWorld Ghana Ltd. Guinea Ion Science France Ivory Coast Ion Science France Libya Ion Science Ltd. (Libya) Marocco Ion Science France Niger Ion Science France Nigeria Benafik Ltd. Senegal Ion Science France Sierra Leone Ion Science Ltd. (Sierra Leone) South Africa Impact Instruments Ion Science France Tunisia ION Science Global Distributors cross Bosnia and Herzegowina Ion Science Ltd. (Bosnia & Herzcegovina europe overlay Europe Belgium Euro Index Albania Ion Science Ltd. (Albania) Croatia Ion Science Ltd. (Croatia) Czech Republic Coup Ostrava Czech Republic Elok Opava Denmark Gas Detect Estonia Ecomatic AS (Estonia) Finland Beup Automation Oy France Ion Science France Germany ISM Ion Science Messtechnik Greece ENCO Ltd. Ireland Shawcity Ltd. (Ireland) Italy Ion Science Italy Latvia Ecomatic Latvija SIA (Latvia) Macedonia Ion Science Ltd. (Macedonia) Netherlands Euro Index Netherlands Hatech Gasdetectietechniek Bulgaria Ion Science Ltd. (Bulgaria) Denmark Duotec Finland Sintrol Oy Hungary Ion Science (Hungary) Lithuania Ecomatic Ltd (Lithuania) Norway Vestteknikk Polamnd Poltraf Sp z.o.o. (LLC) Spain PSA Switzerland Lauper Instruments AG Portugal Eximo Lda Romania Sepadin Russia Poltraf CIS Spirax Sarco SA Spain Sweden Afriso Ema Sweden PPM Industrial AB Sudem Turkey Shawcity Ltd. United Kingdom Shawcity Ltd. United Kingdom cross asia overlay ION Science Global Distributors Bangladesh Ion Science Ltd. (Bangladesh) Asia Bangladesh Labcom Technology Bangladesh Seasafe Bangladesh Cambodia Ion Science Ltd. (Cambodia) China Ion Science (China) India Ion Science India Indonesia PT. HAS Environmental Japan Nippon Thermo Co Ltd Japan Riken Keiki Co Ltd Malaysia Absolute Instrument Systems
(Pte.) Ltd.
Malaysia W2 Industrial Services
Hub Sdn Bhd
Nepal Ion Science Ltd. (Nepal) Amin Feroz & Co. Pakistan Philippines Ion Science (Philippines) Singapore ESAA Singapore W2 Industrial Services
Hub Pte Ltd
South Korea Insko Ltd South Korea SENKO Co. Ltd Sri Lanka Ion Science Ltd. (Sri Lanka) Taiwan Sunray Science Co. Ltd Thailand P & A Technology Comapny Ltd Vietnam Xuyen Dong Duong Tranding & Services Co. Ltd
ION Science Global Distributors
cross Bahrain Newtech International middle east overlay Middle East
Jordan Advanced Molecular Vision Ltd Saudi Arabia Initial Talents Oman Ion Science Ltd. (Oman) Israel Asmos Gazit Ltd Kuwait Mahatta Trading Company Qatar Bin Saud Technical Trading Est (BINTEC) United Arab Emirates Comapny name Ltd.
ION Science Global Distributors cross Australia Air-Met Scientific australia overlay Australasia New Zealand Entec Services Ltd. Australia Air-Met Scientific New Zeland Teltherm Instruments Ltd. New Zeland Ion Science Ltd. (Pacific islands) ION Science Ltd Head office Address Laubach 30, Mettmann, Neandertal, D-40822, Germany Telephone number +49 2104 14480 Email address info@ionscience.com Click Here cross Germany ION Science Ltd Head office Address 41 rue des Etoiles – 83240 Cavalaire / Mer Telephone number +33 613 505 535 Email address info@ionscience.com Click Here cross France ION Science Ltd Head office Address Via delle Querce 1/g 40011 Anzola dell’Emilia (Bologna) Telephone number +39 051 0561850 Email address info@ionscience.com Click Here cross Italy ION Science Ltd Head office Address 4153 Bluebonnet Drive, Stafford, Texas, 77477, USA Telephone number +1 877 864 7710 Email address info@ionscience.com Click Here cross North America ION Science Ltd Head office Address 1101, Bldg B, Far East International Plaza No` 317, Xianxia Road, Shanghai Telephone number +86 21 52545988 Email address info@ionscience.com Click Here cross China ION Science Ltd Head office Address #1-90/B/C/3/1,G-10, Charmy, Vittal Rao Nagar, Image Hospital Lane Madhapur, Hyderabad – 500 081, Telangana State, India Telephone number +91 -40-4853 6129 or +91 -40-4853 6130 Email address info@ionscience.com Click Here cross India Map Key: ION Science Offices Distributors south america grey middle east grey asia grey europe grey africa grey asia overlay south america overlay africa overlay europe overlay middle east overlay australia overlay australia grey

Europe

United Kingdom Head Office

Ion Science Ltd
The Hive, Butts Lane, Fowlmere, Royston, SG8 7SL, UK

Telephone
+44 (0) 1763 208503

Fax
+44 (0) 1763 290477

Email
info@ionscience.co.uk

Albania
Ion Science Ltd.

Belgium
Euro Index

Bosnia and Herzegowina
Ion Science Ltd

Bulgaria
Ion Science Ltd

Croatia
Ion Science Ltd

Czech Republic
Coup Ostrava

Czech Republic
Elok Opava

Denmark
Duotec

Denmark
Gas Detect

Estonia
Ecomatic AS

Finland
Beup Automation Oy

Finland
Sintrol Oy

France
ION Science France

Germany
ISM ION Science Messtechnik

Greece
ENCO Ltd.

Hungary
ION Science Ltd

Ireland
Shawcity Ltd

Italy
ION Science Italy

Latvia
Ecomatic Latvija SIA

Lithuania
Ecomatic Ltd

Macedonia
ION Science Ltd

Netherlands
Euro Index

Netherlands
Hatech Gasdetectietechniek

Norway
Vestteknikk

Poland
Poltraf Sp z.o.o. (LLC)

Portugal
Eximo Lda

Romania
Sepadin

Russia
Poltraf CIS

Spain
PSA

Spain
Spirax Sarco SA

Sweden
Afriso Ema

Sweden
PPM Industrial AB

Switzerland
Lauper Instruments AG

Turkey
Sudem

United Kingdom
Shawcity Ltd

Africa

Algeria
Ion Science France

Egypt
ION Science Ltd

Ghana
GWorld Ghana Ltd

Guinea
ION Science France

Ivory Coast
ION Science France

Libya
ION Science Ltd

Marocco
ION Science France

Niger
ION Science France

Nigeria
Benafik Ltd

Senegal
ION Science France

Sierra Leone
ION Science Ltd

South Africa
Impact Instruments

Tunisia
ION Science France

Asia

Bangladesh
Ion Science Ltd

Bangladesh
Labcom Technology

Bangladesh
Seasafe Bangladesh

Cambodia
ION Science Ltd

China
ION Science (China)

India
ION Science India

Indonesia
PT.HAS Environmental

Japan
Nippon Thermo Co Ltd

Japan
Riken Keiki Co Ltd

Malaysia
Absolute Instrument Systems (Pte.) Ltd

Malaysia
W2 Industrial Services Hub Sdn Bhd

Nepal
ION Science Ltd

Pakistan
Amin Feroz & Co.

Philippines
ION Science Ltd

Singapore
ESAA

Singapore
W2 Industrial Services Hub Pte Ltd

South Korea
Insko Ltd

South Korea
SENKO Co. Ltd

Sri Lanka
ION Science Ltd

Taiwan
Sunray Science Co. Ltd

Thailand
P & A Technology Company Ltd

Vietnam
Xuyen Dong Duong Trading Services Co. Ltd

Australasia

Australia
Air-Met Scientific

New Zealand
Entec Services Ltd.

New Zealand
Teltherm Instruments Ltd.

New Zealand
ION Science Ltd (Pacific Islands)

Middle East

Bahrain
Newtech International

Israel
Amos Gazit Ltd

Jordan
Advanced Molecular Vision Ltd

Kuwait
Mahatta Trading Company

Oman
ION Science Ltd

Qatar
Bin Saud Technical Trading Est (BINTEC)

Saudi Arabia
Initial Talents

United Arab Emirates
Bin Saud Technical Trading Est

North America

USA
ION Science Inc.

Canada
ION Science Inc.

South America

Argentina
Dastec S.R.L

Bolivia
Dastec S.R.L

Bolivia
Inteccon Inc.

Brazil
Clean Environment

Brazil
Inteccon Inc.

Chile
Inteccon Inc.

Columbia
Inteccon Inc.

Ecuador
Inteccon Inc.

French Guiana
Inteccon Inc.

Guyana
Inteccon Inc.

Paraguay
Inteccon Inc.

Peru
Inteccon Inc.

Suriname
Inteccon Inc.

Uruguay
Inteccon Inc.

Venezuela
Inteccon Inc.

Tiger Select Portable Benzene Gas Detector Enquiry Form

Please complete the form below and a member of our team will contact you shortly.
