Titan 2

Monitor and sample benzene with world leading benzene gas monitor.

Titan 2 benzene gas monitor incorporates the NEW MiniPID T2 10.0 eV Sensor which offers improved sensitivity, reliability and overall performance. The unique sampling method eliminates interfering gases such as toluene, xylene and methane providing you with accurate benzene concentration readings you can rely on.

IECEx certification ATEX certfication
Inquire NowDownload Brochure
Titan_2_benzene_monitor

Features

Titan 2 offers a world leading solution for the detection of benzene, providing precise detection at levels as low as 0.02 ppm (20 ppb) and as high as 20 ppm within 60 seconds. Titan 2 benzene gas monitor has been specifically engineered to analyze airborne dangers and can be utilized to evaluate the efficiency of purification or vapor recovery systems/units (VRU).

Titan 2 benzene gas monitor has obtained certification for use in ATEX zoned environments and locations. Furthermore, the enclosure is IP65 rated, offering reliable protection against the intrusion of dust and water.

Key Features

  • New MiniPID T2 10.0 eV Sensor – Unique to Titan 2.
  • Low Detection Limit – Can detect benzene down to 0.02 ppm (20 ppb).
  • IP65 – Protection against a range of atmospheric conditions.
  • Interchangeable Service Module – plug and play cartridge.
  • 4-20 mA & RS485 Communication Options – Connect to your own control system.
titan_2_features

Typical Industries & Applications

  • Oil & gas
  • Bulk storage facilities
  • Chemical manufacturing and processing
  • Asphalt production
titan_2_applications

2 Year Extended Warranty Available

Step 1) Purchase an ION Science Titan 2 benzene gas detector

Step 2) Register your instrument here within one month of purchase

Step 3) Receive a 2 year extended warranty certificate!

titan_2_benzene_monitor
4-20 mA & RS485 communication options
Internal data storage, can be downloaded for analysis
Modular design for ease of installation and servicing
Samples gas once per minute
Internally regulated heating for stable operation at extreme temperatures
ATEX, IECEx and QPS certified

Industrial Environments

Benzene is a highly toxic and carcinogenic chemical that can cause both short-term and long-term effects on workers who are exposed to it. The most significant health risks associated with long-term benzene exposure is the development of leukemia, specifically acute myeloid leukemia (AML).

Titan 2 delivers unrivalled accuracy and sensitivity in benzene detection and is ideal for use in a variety of sectors such as oil and gas, bulk storage facilities, chemical manufacturing and processing and asphalt production.

What’s Included?

  • Titan 2 Benzene Monitor
  • Titan 2 Handles
  • Transit Strap
  • Transit Strap Screws
  • Accessory Kit (9 Way Connector, 5 Way Connector, 2 mm Allen Key, 2.5 mm Allen Key, 3 mm Allen Key, Actuation Magnet)
  • Hydrophobic Filter
  • Gland Port Plug (For Transportation)
  • Documentation (Safety Notice, Responsibility of Correct Use, Calibration Certificate)

Technical Specification

Specification Value
Sensor Type MiniPID T2 10.0 eV Sensor
Sensitivity Benzene specific within typical petrochemical matrix
Detectable Range 0.02 ppm – 20 ppm
Measuring Frequency One Minute
Lower Level of Detection 0.02 ppm (20 ppb) (10 ppb resolution)
Accuracy +/- 50 ppb or +/- 10%, whichever is greater*
Temperature Stability Internally heated
Flow Rate Sample flow rate ≥ 100 ml/min
Display

Graphic BW LCD 64 x 128 pixels with backlight

Bright LEDs for normal operation, fault and alarm

Two magnetic switches for menu operation

Operating Temperature Recommended operating range of -20 oC to +50 oC (-4 oF to +122 oF) for optimum performance**
Approvals

4FTZU 14 ATEX 0172X
Ex II 2G Ex db IIB+H2 T4 Gb
Tamb. = -20 oC to +55 oC

IECEx FTZU 14.0030X
Ex db IIB+H2 T4 Gb
Tamb. =-20 oC to +55 oC

QPS LR1621-1
Ex db IIB+H2 T4 Gb
AEx db IIB+H2 T4 Gb
Ta=-20 oC to +55 oC

Ingress Protection Rating IP65
Humidity 0 – 99 % RH
Minimum Service Period 6 months – PID lamp, electrode stack, inline filter, VRV restrictor, Hydrophobic & carbon filter replacement
12 months – PID lamp, electrode stack, inline filter, VRV restrictor, hydrophobic & carbon filter, Airsep filter
Cable Entry Two ¾ NPT gland threads
Power Requirements Vin (nom) 24 V DC @ 3.2 A (recommended)
Vin (max) 32 V DC @ 2.4 A
Vin (min) 19 V DC @ 4.0 A
Communication Isolated 4-20 mA output
Isolated RS 485 Modbus connection via ASCII or RTU (simplex/half duplex or fully duplex)
Micro USB (PC Software)
Data Storage On board MMC, minimum of six months (2GB)
Relay Output Two isolated outputs, voltage free, 24 v DC @ 1.25 A
Weight and Dimensions 15 kg (33 lbs)
219 x 219 x 172 mm (8.6 x 8.6 x 6.8” approx.)
Gas Sample Line 10 m max length, PTFE, 6 mm OD, 4 mm ID

*± 10 ppb for readings ≤ 0.1 ppm

**+55 oC = ± 20% accuracy

Video Library

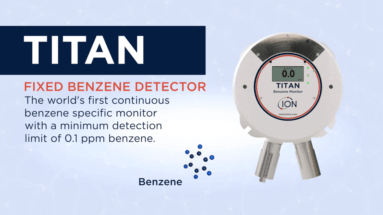

Titan 2 Benzene Fixed Monitor

Titan 2 Overview - Find more about the Titan 2!

Titan 2 service module

Titan 2 service module - Find more about some of the Titan 2 features!

Titan 2 Benzene Gas Monitor Accessories and Replacement Parts

There are a number of accessories and replacement parts available for the Titan 2 Benzene Gas Monitor, which can be found below. Please contact us if you would like more information or to place an order.

titan_2_hydrophobic_filter

Hydrophobic Filter

Used to prevent the ingress of water and dust.

Part Number: A-875417

carbon_filter_with_connectors

Carbon Filter Assembly (With Connectors)

Used to prevent the ingress of water and dust.

Part Number: A-875505
