Ground Gas Detector

GasClam 2

Continuous Ground Gas Detector

GasClam 2 continuous ground gas monitor collects unmanned continuous ground gas concentration data as well as parameters that are known to control it – subsurface pressure, atmospheric pressure and water level.

Typical applications include:

  • Soil contamination and Remediation
  • Decontamination
  • Emergency Response
  • Exploration

csa_certificationIECEx certificationATEX certfication

Enquire NowDownload Brochure
continuous ground gas detector

Features

Using GasClam 2 continuous ground gas detector provides a hierarchy of financial benefits, these include:

  • Reduced number of site visits by a field engineer
  • Reducing the overall length of monitoring programmes as legislative data requirements can be met quicker
  • The third, and largest savings is made by designing appropriate, rather than over-engineered, solutions based on complete and robust data

Ultimate Performance

  • Supports and industry recognised best practice approach to ground-gas monitoring
  • Battery powered deployment for over 3 months (depending on logging frequency)
  • Reduces number of site visits

Ultimate Safety

  • Demonstrates regulatory compliance and due diligence
  • Optimised site management with insights from continuous monitoring

Ultimate Flexibility

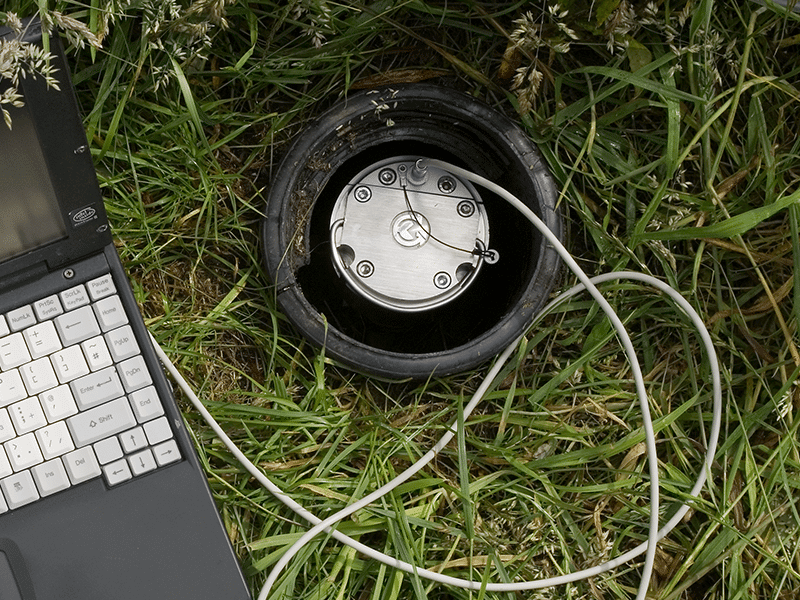

  • GasClam2 ground gas detector fits in to standard 50mm/2” borehole
  • Discrete installation

Technical Specification

csa_certificationIECEx certificationATEX certfication

Performance

Gas CO2**, CH4**, O2, CO*, H2S*, VOC*
Method / Type CO2, CH4: Infrared
O2, CO, H2S: Electrochemical
VOC: PID
Range CO2: 0-100 %
CO2: 0-5 %
CH4: 0-100%
CH4: 0-5%
O2: 0-25 %
CO: 0-2000 ppm
H2S: 0-100 ppm
VOC: 0-4000 ppm
Resolution CO2 0-100 %: 1 % above 50 % 0.5 % below 50 %
CO2 0-5 %: 0.05% above 2.5% 0.025 below 2.5 %
CH4 0-100 %: 1 % above 50 % 0.5 % below 50 %
CH4 0-5 %: 0.05 % above 2.5 % 0.025 below 2.5 %
O2: 0.1 %
CO, H2S, VOC: 1 ppm
Accuracy CO2 0-100 %, CO2 0-5 %, CH4 0-100 %, CH4 0-5 %: ± 2 % FSD
O2: ± 5 % of reading ± 1 digit
CO: < ± 3 ppm at 0 ± 5 % at 250 ppm ± 10 % full scale
H2S: < ± 1 ppm at 0 ± 2.5 % at 50 ppm
VOC: ± 5 % of reading ± 1 digit

Performance Dual CO/H2S

Method / Type Electrochemical
Range CO: 0 – 500 ppm
H2S: 0 – 200 ppm
Resolution 1 ppm
Accuracy CO: < ± 3 ppm at 0 ± 3 % at 250 ppm
H2S: < ± 1 ppm at 0 ± 2 % at 100 ppm

Environmental

Barometric Pressure Piezoelectric, 800 to 1250, 1 mBar
Borehole Pressure Piezoelectric, 800 to 1250, 1 mBar
Temperature Internal Chip, – 5 to + 50 °C or 22 to 122 ° F
Water Depth Piezoelectric, 0 – 25 m (Various available) 0.01 m

Power Options Internal: Option of Lithium primary cells or Duracell Alkaline D-Cells or Rechargeable battery pack
External: Accepts intrinsically safe external power supply for extended and/or rapid monitoring
Typical battery life (hourly sampling) Lithium primary cells – 3 months
Alkaline cells – 1 month
Rechargeable battery pack – 3 weeks

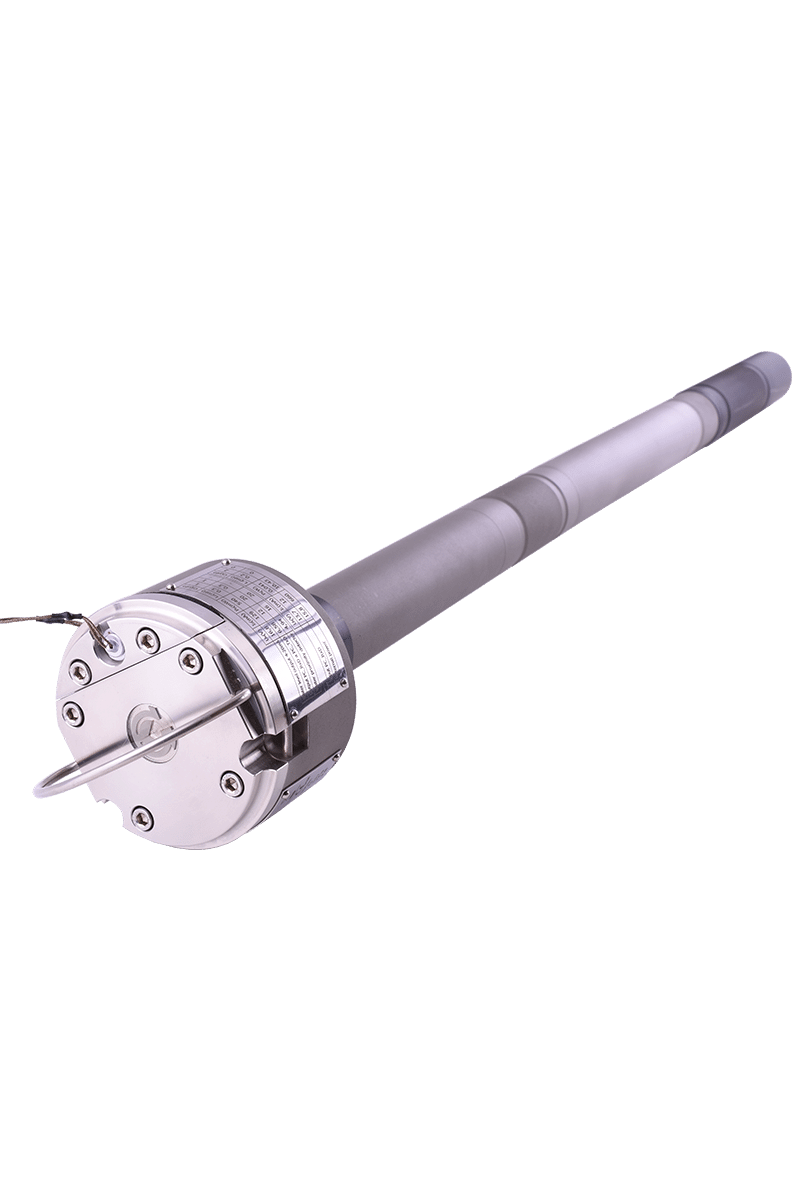

Weight and Dimensions 7.5 kg (16. lbs) Overall length: 90 cm (35.4 in) – Borehole tube length: 83 cm ( 32.6 in)
Head diameter: 11 cm (4.3 in) – Borehole tube diameter: 4.7 cm (1.85 in)
Protection IP68 rated (continuous submersion)
Operation Temp – 20 to 50 °C (- 4 to 122 °F)
Patents and Approvals

European and World-wide Patented

EMC, ATEX 0105 X CE

II 2G Ex d ib [ib] IIB T4 Gb

IECEx Ex d ib [ib] llB T4 Gb

CSA C (US & Canadian Approvals)

Class 1, Zone 1 (A)Ex d id llB T4

European patent granted / Worldwide patent granted.
Exclusively sold and promoted by Ion Science Ltd.
GasClam 2® is a registered trademark of Intelisys Ltd T/A Salamander Group.
* Optional; ** Choice of 2 IR sensors, specify on order.
