Sensor Development Kit (SDK)

Efficient way to test and integrate the ION Science photoionisation detection sensors into any application.

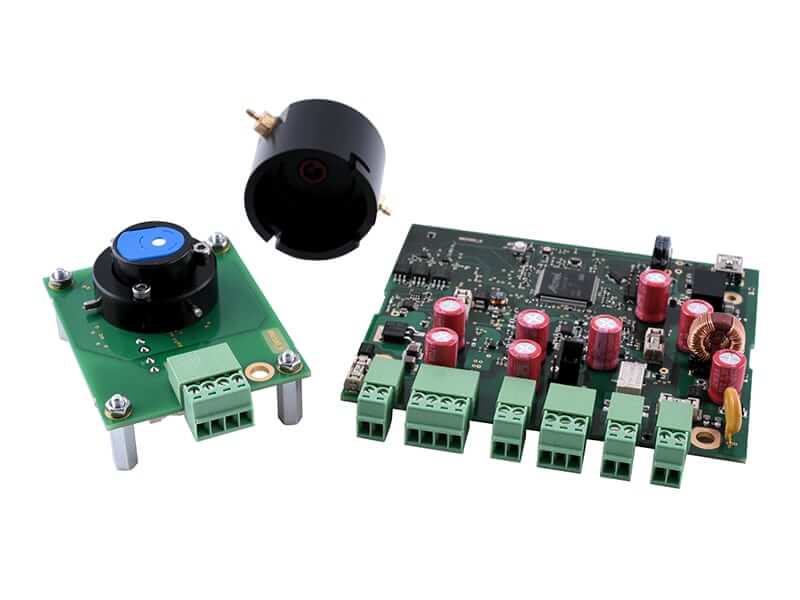

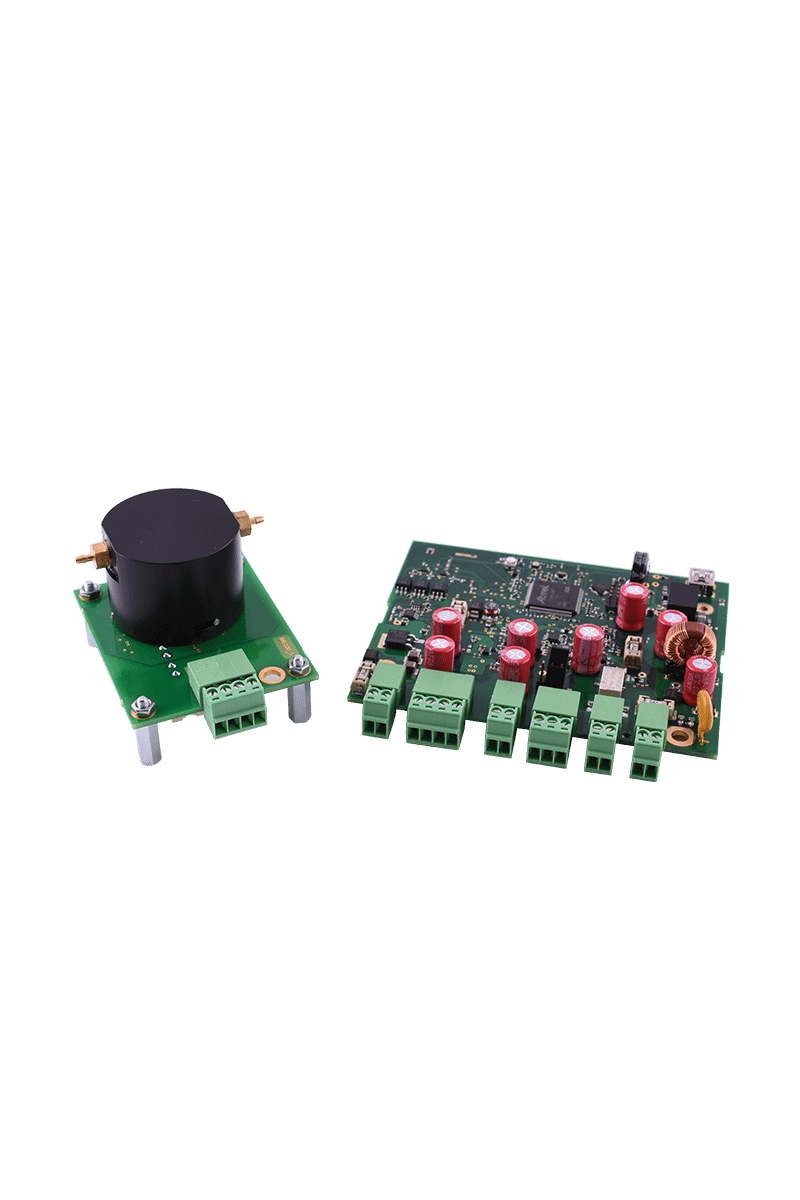

The Sensor Development Kit (SDK) is comprised of two printed circuit boards (PCBs), a sensor PCB and integration PCB with a gas delivery hood.

Enquire NowDownload Brochure
sensor_development_kit

Features

Sensor PCB – The sensor board acts as a sensor breakout board enabling users to inset any MiniPID photoionisation detection sensors and perform basic sensor testing. It can also be connected to the integration board making it really simple to add PID sensors to any application.

Integration PCB – The integration board provides signal processing, data logging and communications with industry standard 4-20 mA and Modbus outputs.  It can be configured to switch a relay on at a given VOC concentration.   The Integration board is configured with a simple PC application.

Key Features

  • 4- 20 mA input and output
  • Modbus communication
  • Data logging
  • 12 month warranty

Key Features

  • Simple sensor calibration
  • MS window compatible configuration software
  • Bayonet locking gas hood
  • Easy sample delivery

Sensor Development Kit Technical Specification

Sensor PCB

Dimensions in mm 50 (W) x 62 (D) x 4 (H)
Output Analogue 0 to rail voltage
Input voltage 5 Vdc ± 0.5 V
Working temperature – 20 °C to + 60 °C
Humidity resistant 0 to 99% RH non condensing
Warranty period 12 months

Integration PCB

Dimensions in mm 99 (W) x 85 (D) x 20.5 (H)
Output Modbus RS485
Relay (250 VAC / 2A 4 – 20 mA outputs
Input voltage 12 to 30 Vdc ± 0.5 V
Working temperature >98 % up to 100 ppm
88 % at 1000 ppm
75 % at 4000 ppm
Humidity resistant – 20 °C to + 60 °C
Warranty period 12 months

Gas Delivery Hood

Dimensions in mm Total height including PCB 40 mm
Pipe connection 1/16″ OD barb push fit
1/16″ @ ID / 1/8 @ OD Viton pipe recommended
Seal material Viton
Max gas pressure <300 mBar

Downloads

Download Drawings

For further supporting documentation please see below.

Sensor Development Kit Accessories and Replacement Parts

There are a number of accessories and replacement parts available for the Sensor development kit, which can be found below. Please contact us if you would like more information or to place an order.
